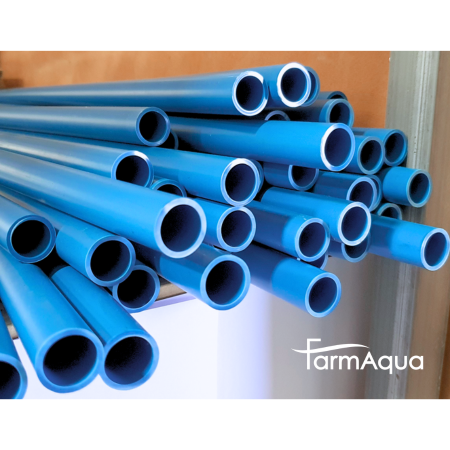

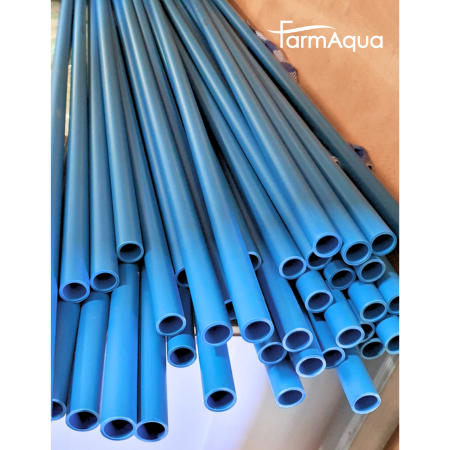

PVC Pipe

    Nominal size Outside diameter (mm.) Thickness (mm.) Length (mm.)
    Inch mm. Class 5 Class 8.5 Class 13.5
    18 1/2" 22 ± 0.15 - 2.0 ± 0.15 2.6 ± 0.15 4000
    20 3/4" 26 ± 0.15 - 2.0 ± 0.15 2.6 ± 0.15
    25 1" 34 ± 0.15 - 2.0 ± 0.15 3.0 ± 0.25
    35 1 1/4" 42 ± 0.15 1.5 ± 0.15 2.2 ± 0.20 3.1 ± 0.25
    40 1 1/2" 48 ± 0.15 1.5 ± 0.15 2.3 ± 0.20 3.5 ± 0.25
    55 2" 60 ± 0.15 1.8 ± 0.20 2.9 ± 0.25 4.3 ± 0.30
    65 2 1/2" 76 ± 0.20 2.2 ± 0.20 3.5 ± 0.25 5.4 ± 0.30
    80 3" 89 ± 0.20 2.6 ± 0.20 4.1 ± 0.30 6.4 ± 0.40
    100 4" 114 ± 0.30 3.2 ± 0.20 5.2 ± 0.30 8.1 ± 0.50
    125 5" 140 ± 0.30 3.9 ± 0.25 6.4 ± 0.40 9.9 ± 0.55
    150 6" 165 ± 0.40 4.6 ± 0.25 7.5 ± 0.45 11.7 ± 0.65
    200 8" 216 ± 0.50 5.4 ± 0.25 8.8 ± 0.50 13.7 ± 0.70
